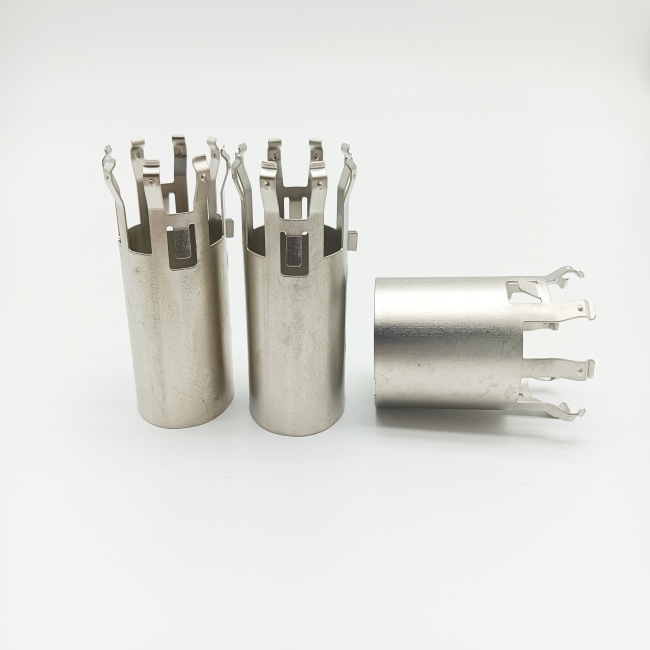

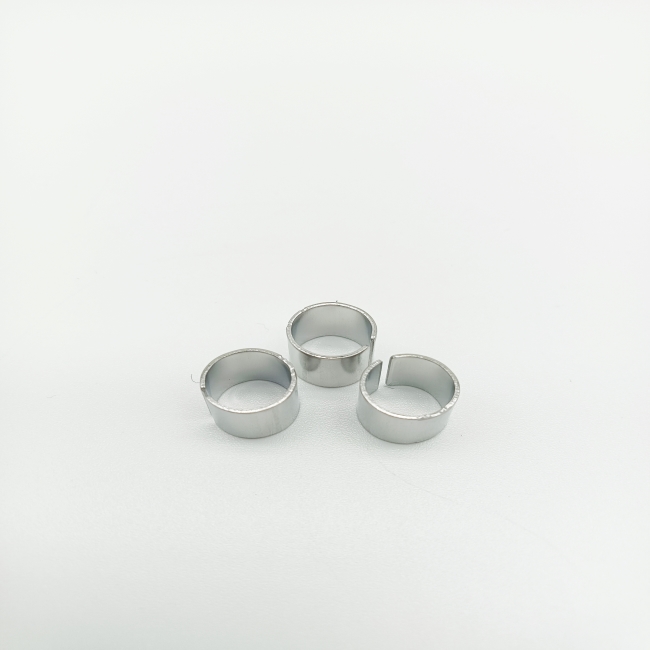

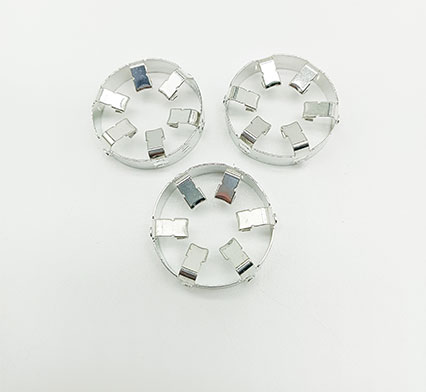

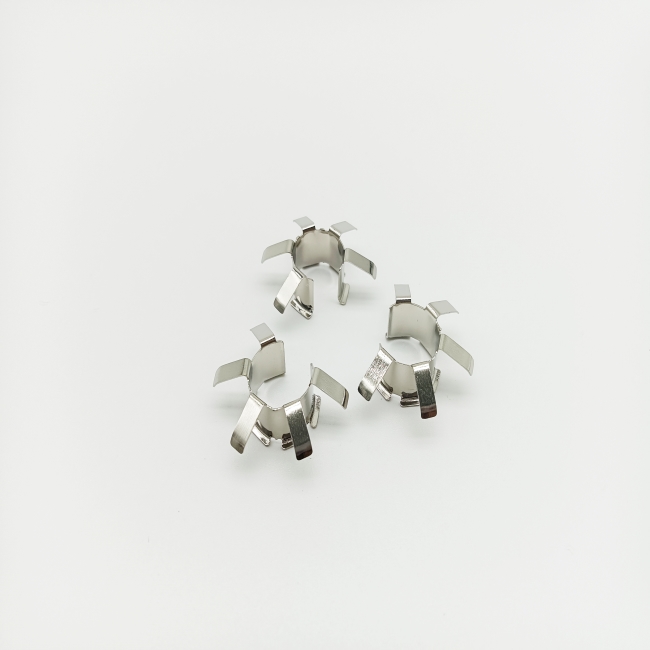

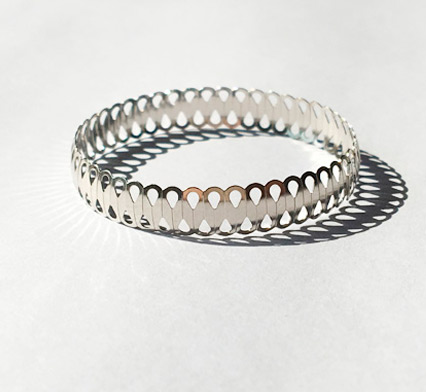

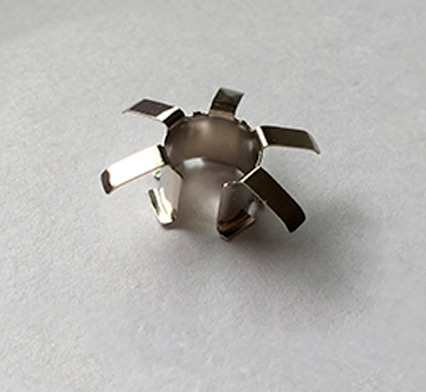

Edge Rolling Parts Design

For thin soft materials (t<=0.5)

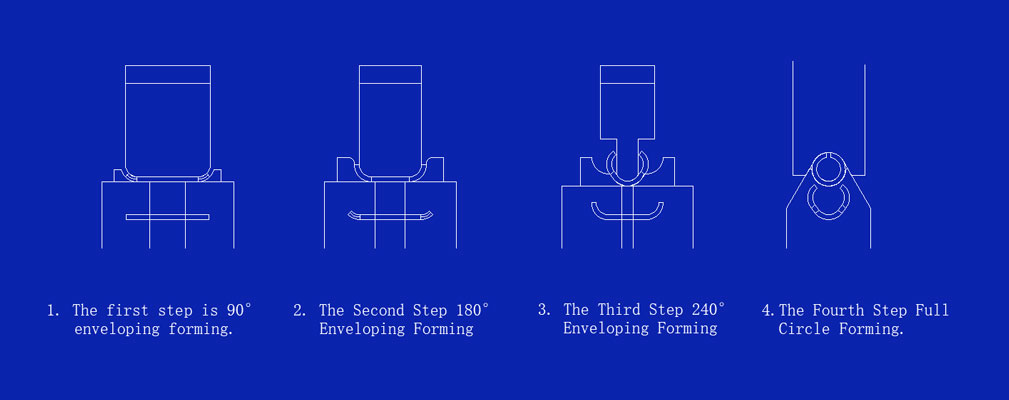

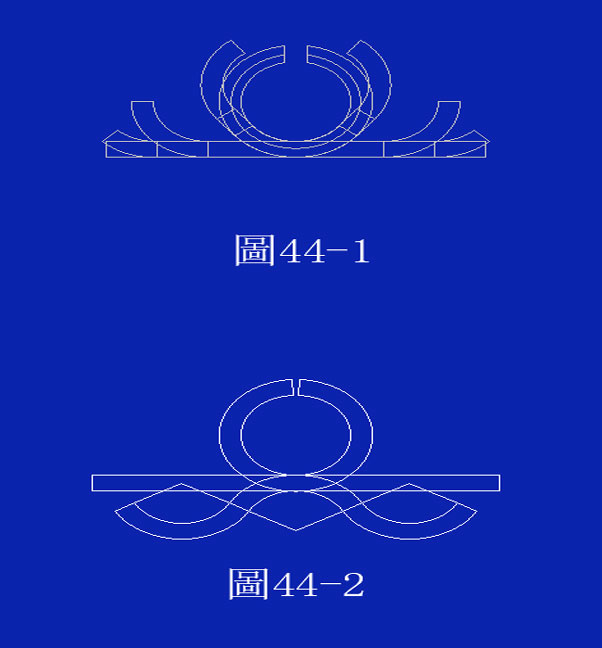

A: When the inner diameter of the enclosed circle ∅d<=4.0, the 4-step pressure arc forming method is generally used for the enclosed circle, as shown in Figure 44-1.

B: When the inner diameter of the inner circle is 4. 0<∅d<=15.0, you can use either the 4-step arc forming style for wrapping or the mandrel forming style for wrapping

C: When the inner diameter of the inner circle ∅d>15.0, the mandrel forming method is generally used.

D: If the product requires a high centroid dimension, for the inner diameter of the inner circle ∅ D >3.0, we recommend using the mandrel forming method because it can make the circle a little rounder.

For thick hard materials (t>0.5)

For thick hard materials, if the 4-step pressure arc forming method is used to wrap the circle, it is generally difficult to wrap it around as the centrality is poor.

Because the material's yield strength is high, it is difficult to turn over to roll the material; And thin soft material's yield strength is low, the shape is easy to be rolled when making the formation, therefore, for thick hard material forming, we recommend to choose mandrel forming method to wrap. As shown in figure 44-2.

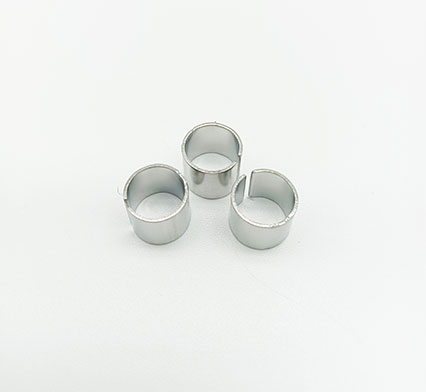

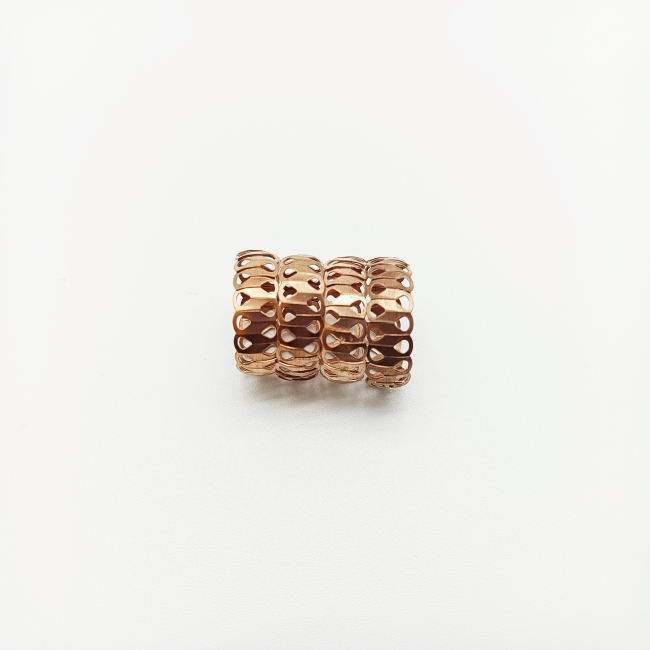

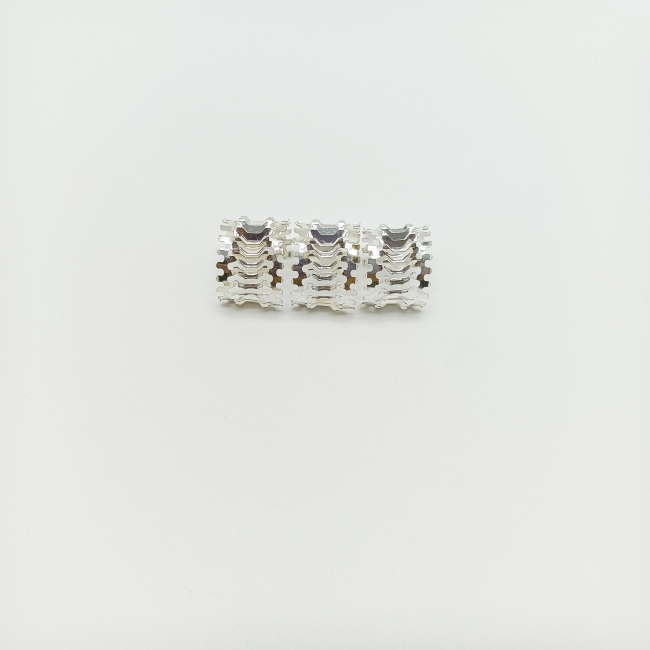

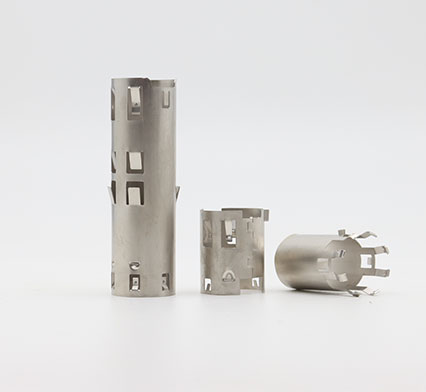

Rolled Metal Edge Parts Benefits

High Productivity

Good Reproducibility and Stable Quality

High Material Utilization Rate

Low Price



What Is The Common Problems And Solutions In The Stamping Process Of Edge Rolling Parts

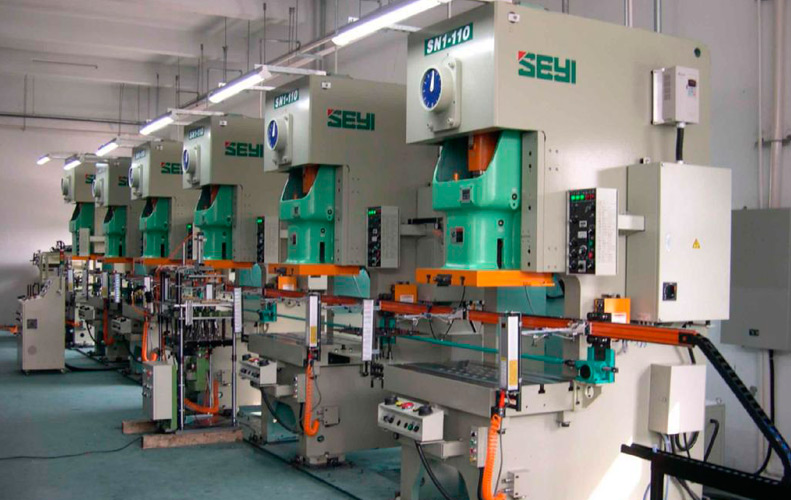

We often encounter poor roundness, too big a closure gap, and all kinds of technical problems such as surface pits when stamping edge rolling products. With more than 20 years of development, we stamping parts manufacturer already have a complete set of high precision equipment, a technical team, and a perfect scientific management system in the stamping industry, which can quickly help solve the problem of stamping precision and production quality for you. Choose Orienson, choose rest assured!
